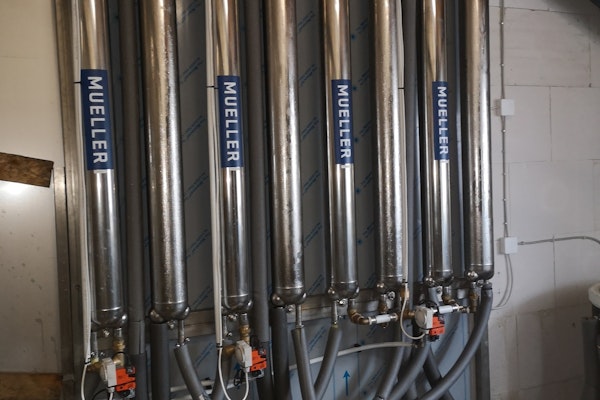

Pipe Cooler
-
- Dairy Farm
-
- Heat Transfer
- Refrigeration & Chilling
-
- Cooling & Chilling
- Heat Recovery
-
Features
- Energy-Smart Investment – Low energy costs mean it pays for itself fast.
- Maximized Cooling Efficiency – The large exchange surface ensures rapid and effective heat transfer.
- Hassle-Free Cleaning – Designed for quick and easy cleaning.
- Minimal Pressure Drop – Keeps your system running smoothly without resistance.
- Versatile for Any Dairy Farm – Perfect for all robotic milking systems and milk volumes.
- Safe & Reliable – Prevents any risk of water and milk mixing.
- Quick & Simple Installation – Set up in no time.
- Maintenance-Free – Built to perform without the need for regular upkeep.
Why Choose a Pipe Cooler?
- Cuts energy costs significantly
- Extends milk tank efficiency
- Reduces bacterial growth for fresher milk
-
Specifications & Sizing
- Material pipes: RVS AISI 316
- Length: 160 cm
- Diameter: 14 cm
- Weight: 30 kg
- Milk connection: 40 mm/50 mm + 25mm for robot
- Water connection: 1”
- Max. pressure: 16 Bar
- Max. temperature: 250 °C
Features
- Energy-Smart Investment – Low energy costs mean it pays for itself fast.
- Maximized Cooling Efficiency – The large exchange surface ensures rapid and effective heat transfer.
- Hassle-Free Cleaning – Designed for quick and easy cleaning.
- Minimal Pressure Drop – Keeps your system running smoothly without resistance.
- Versatile for Any Dairy Farm – Perfect for all robotic milking systems and milk volumes.
- Safe & Reliable – Prevents any risk of water and milk mixing.
- Quick & Simple Installation – Set up in no time.
- Maintenance-Free – Built to perform without the need for regular upkeep.
Why Choose a Pipe Cooler?
- Cuts energy costs significantly
- Extends milk tank efficiency
- Reduces bacterial growth for fresher milk
Specifications & Sizing
- Material pipes: RVS AISI 316
- Length: 160 cm
- Diameter: 14 cm
- Weight: 30 kg
- Milk connection: 40 mm/50 mm + 25mm for robot
- Water connection: 1”
- Max. pressure: 16 Bar
- Max. temperature: 250 °C
How It Works
Using a counter-current cooling system, milk and cold water flow in opposite directions in separate channels. With a 2:1 water-to-milk ratio, the milk is pre-cooled to about 20°C, cutting down tank cooling time. A single unit cools up to 3,000L/hour, while a duo system handles up to 6,000L/hour.
