Paul Mueller Company

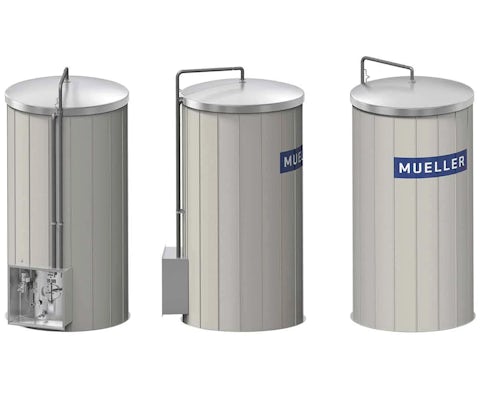

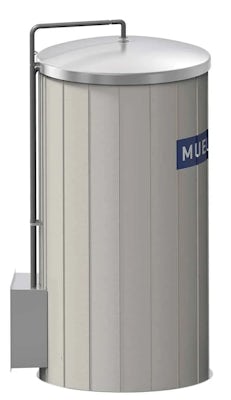

Milk Tower

    • Dairy Farm
    • Tanks & Vessels
    • Cooling & Chilling
    • Storage

  1. Features

    • Heat transfer surface
    • QMI fitment door includes an aseptic sampler
    • IFM sensor well (level)
    • 3" outlet connection
    • 3" inlet connection
    • 4" vent assembly
    • Self-regulating heat tape on CIP/vent line
    • Stainless steel inner shell
    • Stainless steel base assembly

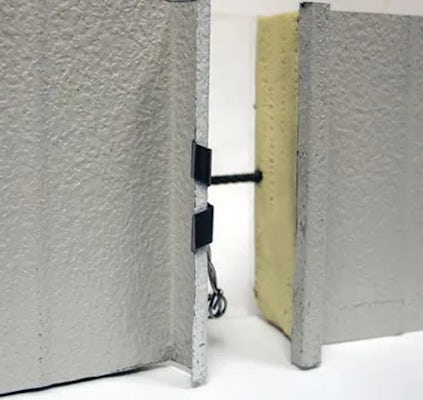

    • Embossed aluminum outer shell (ash grey)

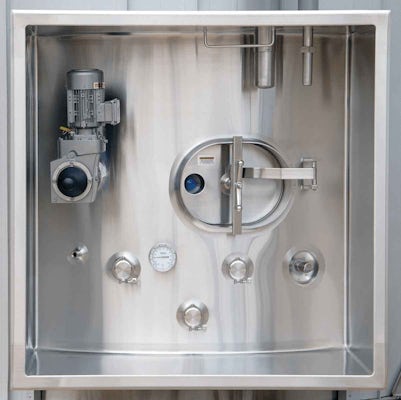

    • Stainless steel alcove
    • Mechanical horizontal agitation
    • Perforated and removable vent screens
    • Thermometer well for recording thermometer
    • Dial-type thermometer
    • Removable clean-in-place spray dish

    Optional Features

    • Tank Mate or Anderson sensor well (level)
    • Upgrade outlet to 4"
    • Upgrade inlet to 4"
    • Additional 3" or 4" inlet connection
    • 3-A Sanitary Finish

    Add-ons

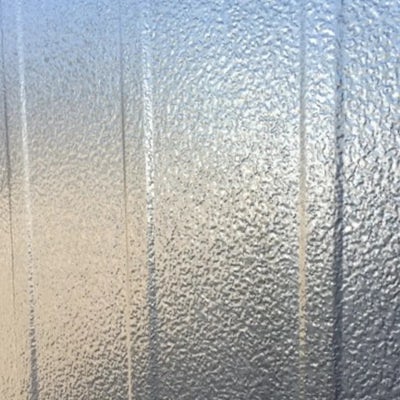

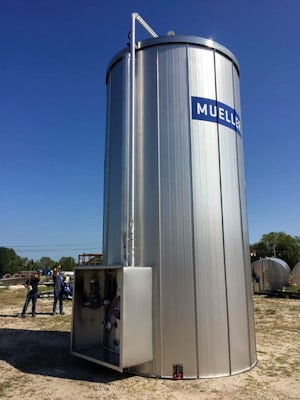

    • Stainless steel outer shell
    • 3" disc-type outlet valve
    • CIP attachment
    • CIP door

  2. Specifications

    Capacity - gallons (liters)Dimensions - in (cm)AgitatorEmpty Weight - lbs (kgs)
    ID Base Height HP RPM
    7,000 (26,498) 120 (304.8) 129.75 (329.6) 222.75 (565.8) 1 99 7,931 (3,597)
    10,000 (37,856) 120 (304.8) 129.75 (329.6) 282.75 (718.2) 2 99 8,625 (3,912)
    15,000 (56,781) 120 (304.8) 129.75 (329.6) 380.75 (967.1) 2 99 9,960 (4,518)
    20,000 (75,708) 120 (304.8) 129.75 (329.6) 483.75 (1,228.7) 3 155 11,422 (5,181)
    25,000 (94,635) 140 (355.6) 149.75 (380.4) 464.50 (1,179.8) 15,025 (6,815)
    30,000 (113,562) 140 (355.6) 149.75 (380.4) 524.50 (1,332.2) 3 155 15,835 (7,183)
    35,000 (132,489) 140 (355.6) 149.75 (380.4) 614.50 (1,560.8) 18,080 (8,201)
    40,000 (151,416) 140 (355.6) 149.75 (380.4) 674.50 (1,713.2) 3 155 18,890 (8,568)
