Paul Mueller Company

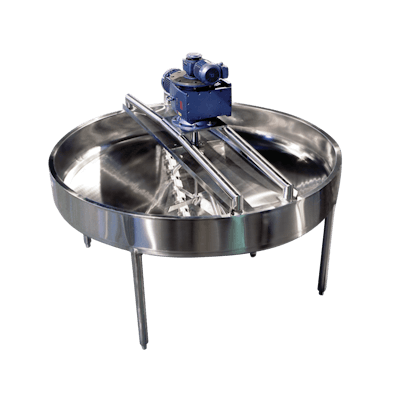

Cook & Chill Tank

    • Food
    • Tanks & Vessels
    • Cooling & Chilling
    • Heating
    • Mixing
    • Storage

  1. Features

    • Double-action agitation assembly includes both scraping and turbine-type agitators
    • Temp-Plate® heat transfer surface on the bottom head for heating or cooling
    • Large diameter provides maximum efficiency of the heat transfer surface
    • Rated capacity plus 10" freeboard
    • Type 304 stainless steel inner liner and outer jacket
    • Three-inch clamp-type outlet ferrule
    • Stacked mixer drive, dual agitation, single-speed, 230/460 volt, 60 hertz, 3-phase gear motor(s)
    • Two-inch Inswool (low chloride) insulation
    • One thermometer well
    • Adjustable stainless steel legs
    • Easy to clean with large radius corners
    • Sanitary construction includes No. 4 (3-A) finish on interior and exterior with internal and external welds ground and polished

  2. Specifications

    Work with our innovative engineers to create a perfect tank for you and your facility. At Paul Mueller Company, we work to meet all your needs, and with our various shapes, sizes, and specifications, we are confident that we will be able to make a high-quality product that you will love.
