Accu-Therm® Semi-Welded Plate Heat Exchanger

    • Heat Transfer
    • Marine
    • Heat Transfer
    • Cooling & Chilling
    • Heating
    • Heat Recovery

  1. Features

    • Carbon Steel, blue painted frame (Optional stainless steel frame is available)
    • Plate material: 0.6 mm AISI (304 or 316) or titanium
    • 150 to 300 psig design pressure. ASME code standard available
    • Gaskets are available in Nitril®, EPDM, Vitron®, Neoprene, or Chloroprene
    • Rubber-lined, carbon steel, or metal-lined (stainless steel or titanium) nozzles
    • Connections: Studded port, slip-on or weld neck flange, sanitary ferrule, or stub end

  2. Specifications

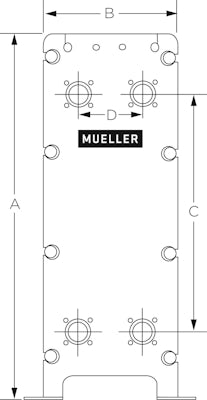

    Model No.A - in (cm)B - in (cm)C - in (cm)D - in (cm)Port Size - in (cm)Maximum Flow Rate - gpm (lpm)
    AT-9W 34.9 (88.6) 13.2 (33.5) 22.2 (56.4) 4.9 (12.4) 1.5 (3.8) 120 (454.2)
    AT-15W 45.2 (114.8) 13.2 (33.5) 32.5 (82.6) 4.9 (12.4) 1.5 (3.8) 120 (454.2)
    AT-25W 49.8 (24.9) 21.7 (55.1) 30.5 (77.5) 10.1 (25.7) 4 (10.2) 800 (3,028.3)
    AT-40W 67.4 (171.2) 18.7 (45.7) 47.5 (120.7) 8.3 (21.1) 3 (7.6) 450 (1,703.4)
    AT-50W 68.7 (174.5) 21.7 (55.1) 49.4 (125.5) 10.1 (25.7) 4 (10.2) 800 (3,028.3)
    AT-65W 68.9 (175) 28.7 (72.9) 45.4 (115.3) 12 (30.5) 8 (20.3) 3,200 (12,113.3)
    AT-85W 90.2 (229.1) 28.7 (72.9) 66.7 (169.4) 12 (30.5) 8 (20.3) 3,200 (12,113.3)
