Horizontal
Serving Tanks
EFFICIENCY
GAINED
- Serve fresher beer and take up less space than a cold room and kegs
- Generate more revenue for beer, wine, seltzer, ready-to-drink cocktails, cider and more
- Increase productivity and profit
- Reduce energy and chemical costs from keg cleaning
- Reduce manual labor and beer handling
- Reduce product loss
- Simplify storage and impress customers with a stunning taproom experience
Key
Features
- Lower preventative maintenance
- Bag-in-Tank system
- Air-pressured dispensing
- Small footprint
- Convenient sight glasses
- ASME Code stamped up to 3 BAR
- Aesthetic display quality finish

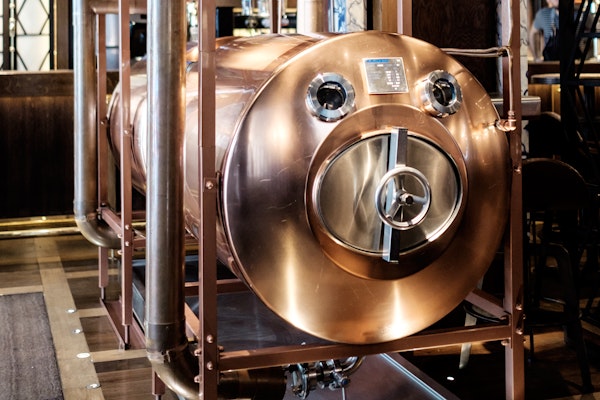

- Finishes: stainless, copper, and vinyl wrap
ESSENTIAL
BENEFITS
- Eliminate the cold room and reduce energy costs
- Fresher beverages at the tap
- Longer shelf life of product
- Less labor for beverage safety and handling (compared to kegs)
- Eliminate tank cleaning with bag in liners —no water needed
- Decreased consumables (chemicals and CO2)

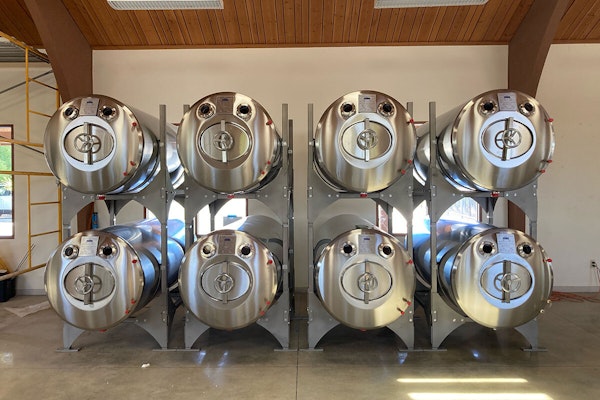

- Stackable configurations for space savings

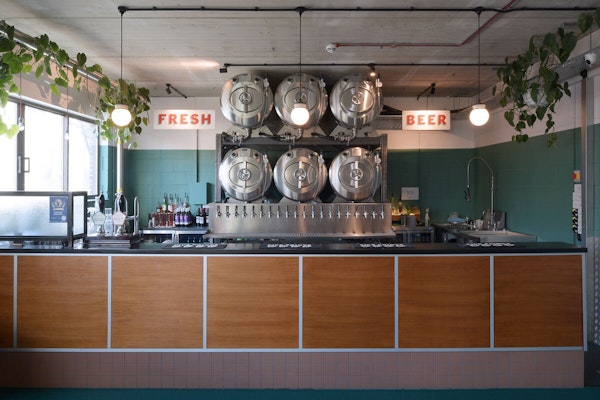

- Visual advantage in your tasting room
AVAILABLE
OPTIONS

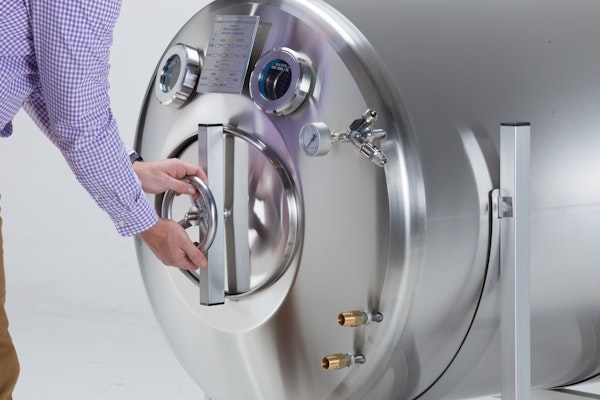

- Hinged manway cover
- Sampling valve connection
- Mobile support or transport frame
- Temperature probes per tank
- Custom stacking options available
REQUIRED
ACCESSORIES
- Stainless steel frame (individual or two (2) required for stacking)
- Extension feet set & adjustable leg set
- Adjustable legs & feet plate sets
- Tank liner bags
- Piercing unit bottom outlet –including DN40 butterfly valve
- Pressure relief valve
- Distribution head – 4 exit
- Glycol adapters (2 required per double wall tank only)
Tank
Liner Bags
- Serving tank liner bags offer a cost-effective, low-handling solution for delivering beer to your taps via Serving Beer Tanks
- Multi-layer copolymer construction prevents oxygen intrusion and maintains beer freshness
- Store inside sealed boxes in clean, dry, and dust-free surroundings, out of direct sunlight
- Maintain storage conditions between 55°-94°F with 65% humidity for optimal performance
- Each liner bag offers a minimum shelf life of 15 months
- Drain liquid from the bag by cutting a corner before discarding it
- Check local recycling availability for #7 recyclable materials
TANK
SPECIFICATIONS
| USABLE VOLUME (LITERS/BBL) | OUTER DIAMETER (IN/CM) | LENGTH (IN/CM) | DRY WEIGHT (LBS) |
|---|---|---|---|
| 250/2.13 | 25/64 | 41/104 | 110 |
| 500/4.26 | 32/81 | 51/130 | 166 |
| 1,000/8.52 | 32/81 | 92/234 | 243 |
| 1,500/12.8 | 32/81 | 133/338 | 410 |
| USABLE VOLUME (LITERS/BBL) | OUTER DIAMETER (IN/CM) | LENGTH (IN/CM) | DRY WEIGHT (LBS) |
|---|---|---|---|
| 250/2.13 | 28/71 | 42/107 | 210 |
| 500/4.26 | 34/86 | 52/132 | 265 |
| 1,000/8.52 | 34/86 | 93/236 | 485 |
| 1,500/12.8 | 34/86 | 134/340 | 750 |
LINER
SPECIFICATIONS
| 1500 L LINERS | (BOX OF 10) |
|---|---|
| 1000L LINERS | (BOX OF 15) |
| 500L LINERS | (BOX OF 20) |
| 250L LINERS | (BOX OF 20) |
